How Heritage Railways Restore Vintage Steam Locomotives

Assessing an engine that has not turned a wheel in decades

Every restoration starts with an honest survey. A locomotive that has sat in a siding for thirty years, or spent a decade as a static exhibit, is rarely as sound as its paint suggests. The first task is to gather history: log books, shed records, boiler paperwork and photographs of earlier overhauls. Where the paper trail runs out, the metal tells its own story.

A condition assessment covers the frames, wheelsets, motion, boiler, tanks, cab and brake gear. Expect to measure rather than guess: ultrasonic thickness readings on the boiler barrel, wear checks on the hornblocks, tyre profiles, and the state of every bearing surface. The aim is a realistic cost estimate and a work scope — not a wish list of everything you would like to replace. Most groups divide the job into mechanical, boiler and cosmetic packages so that funds and labour can be released in stages rather than all at once.

Stripping down: archaeology with spanners

Dismantling is slow, methodical and surprisingly educational. Every nut and bolt is labelled, bagged and photographed. Parts that look identical often are not, especially on engines built before standardisation took hold. Hand tools, heat, penetrating oil and patience do most of the work; the gas axe is a last resort, because original fittings are irreplaceable.

What comes off the frames usually causes the first surprise. A supposedly good boiler may be hiding wasted plates. A free-running set of valve gear may have oval bushes and a bent expansion link. Use the teardown to sort components into three piles:

• Reusable — clean, inspect, measure, then store under cover.
• Repairable — needs machining, welding, re-metalling or new studs.
• Renewable — beyond economic repair, so a pattern is made and a new part cast or fabricated.

The boiler is the heart of the job

Boilers dictate both cost and timescale, and they are the most heavily regulated part of a steam locomotive. In Britain, a locomotive boiler must be examined and certified by a competent inspector, with a certificate typically valid for up to ten years and annual examinations in between. Nothing else on the engine will be signed off until the boiler is sound.

Typical work includes removing firebox stays, cutting out wasted tube plates, renewing crown stays, replacing tubes and flues, and re-riveting or welding seams. Copper firebox plates are annealed, re-formed and re-stayed; steel fireboxes may need patch plates or full renewal. Every weld and rivet is examined — dye penetrant, magnetic particle and ultrasonic testing are standard, with radiographic examination used where access and geometry allow.

The milestones are well defined: a hydraulic test at one and a half times working pressure, followed by a steam test under the inspector's eye. Only then does the boiler get its ticket for service.

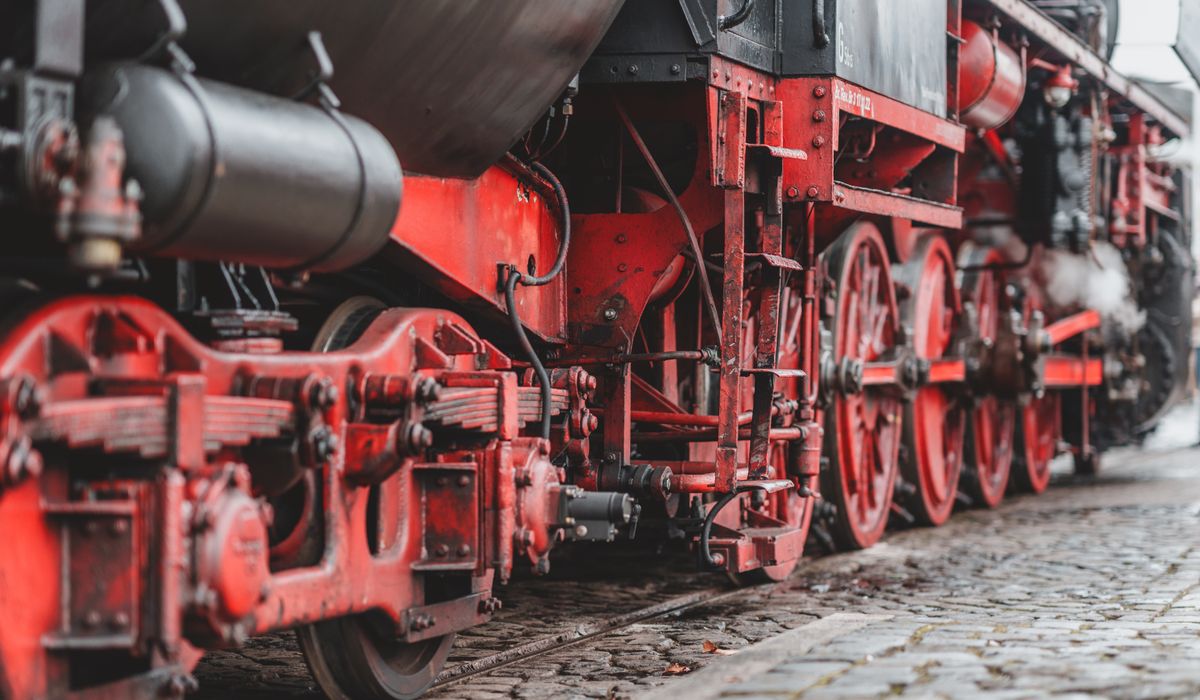

Frames, wheels and motion

Away from the boiler, mechanical restoration is a mix of old craft and modern machining. Wheelsets go to a wheel lathe for tyre reprofiling, and axles are crack-tested before being refitted. Hornblocks and axleboxes are re-metalled with white metal and scraped to fit. Springs are re-set or renewed, and spring hangers checked for wear.

Valve gear is where patience pays. Walschaerts and Stephenson gear both depend on accurate setting; a few thousandths of an inch in the wrong direction will cost you performance and coal. Bushes are renewed, pins remade, and the gear set up so that the valve events match the drawing. Piston rings, glands and packing are replaced, and every lubricator, injector and steam pipe is cleaned, tested and proved before it goes back on the engine.

Reassembly, testing and running in

Reassembly is the reverse of the teardown, but with better fasteners, modern sealants and a great deal of grease. Once the engine is back in one piece it is filled, steamed and run on shed for several days of static testing. Then come light engine trials, followed by loaded test runs, watching for hot bearings, leaks and motions that simply do not sound right.

Running in is measured in hundreds of miles, not hours. Bearings bed in, clearances settle, and the crew learn the engine's habits — where it runs cool, where it needs an eye kept on it. Only after this period is the locomotive considered fit for regular timetabled service.

Skills, apprentices and the long game

None of this happens without people. A typical restoration absorbs tens of thousands of volunteer hours across machining, boiler work, painting, joinery, electrical and administration. The skills are specialised — boiler smithing, riveting, pattern making, bearing scraping — and many were nearly lost before preservation groups began teaching them again.

If you want to help, simply turn up. Heritage railways need cleaners, painters, machinists and tea-makers as much as they need engineers, and most will train you from scratch. The reward is a locomotive that steams, a craft passed to the next generation, and the knowledge that you helped put a piece of working history back on the rails.
